AIM MyChron RPM Cable for MyChron 5 / 5s / 6

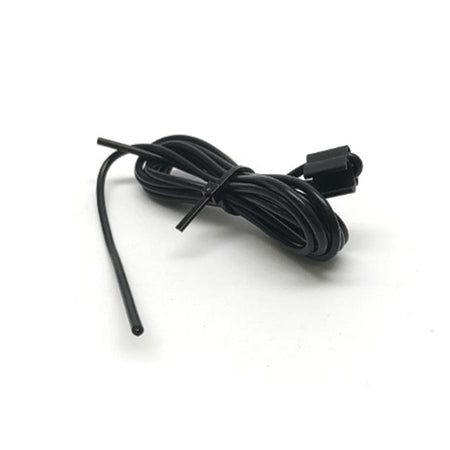

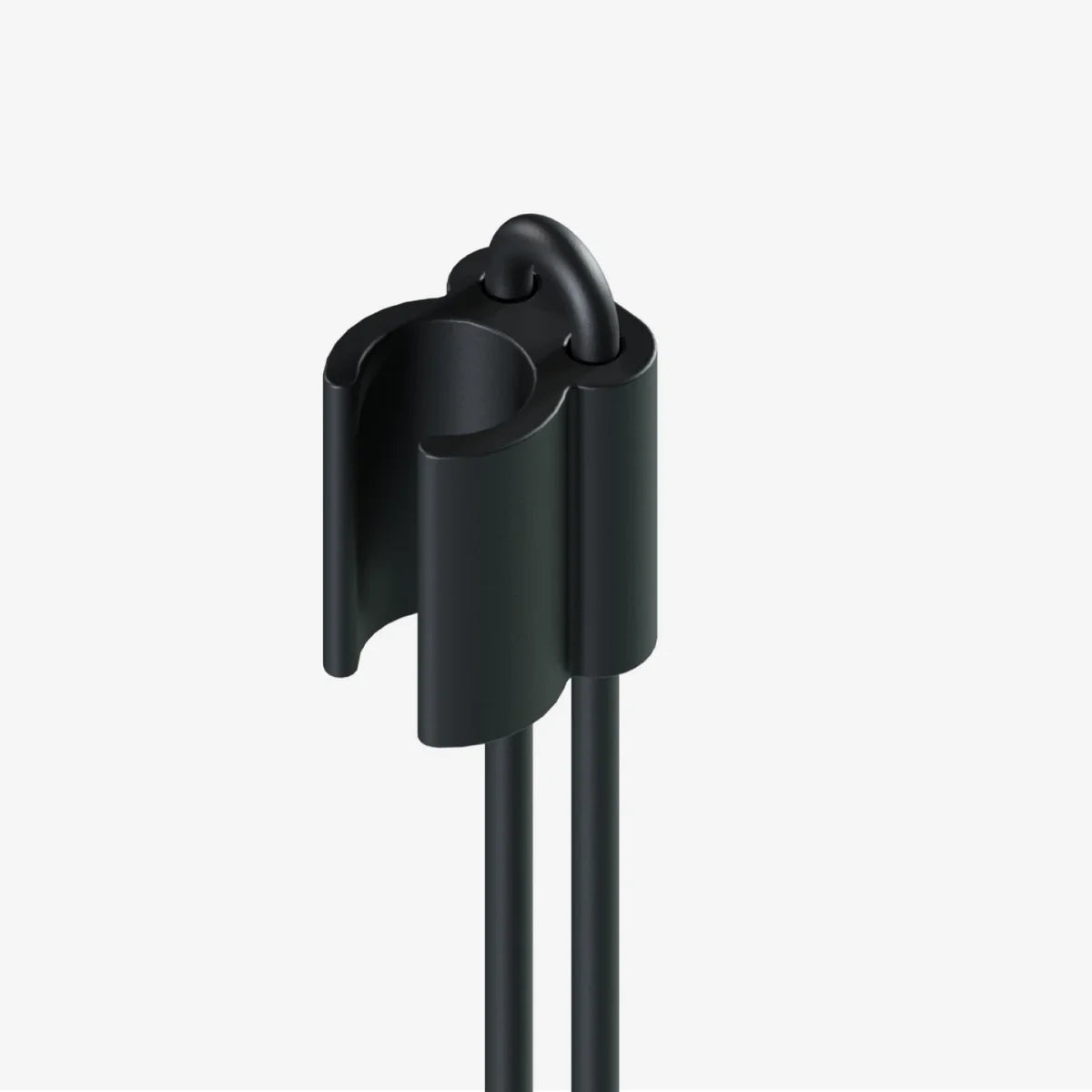

The AiM MyChron4 / MyChron5 / MyChron6 RPM sensor cable and clip. The RPM clip wire is designed to be plugged directly on the spark plug wire and is used for RPM pick up from mono-cylinder, 2/4 stroke engines.

Sensor type: Inductive
Maximum RPM plug diameter: 8 mm
Cable length: 150cm

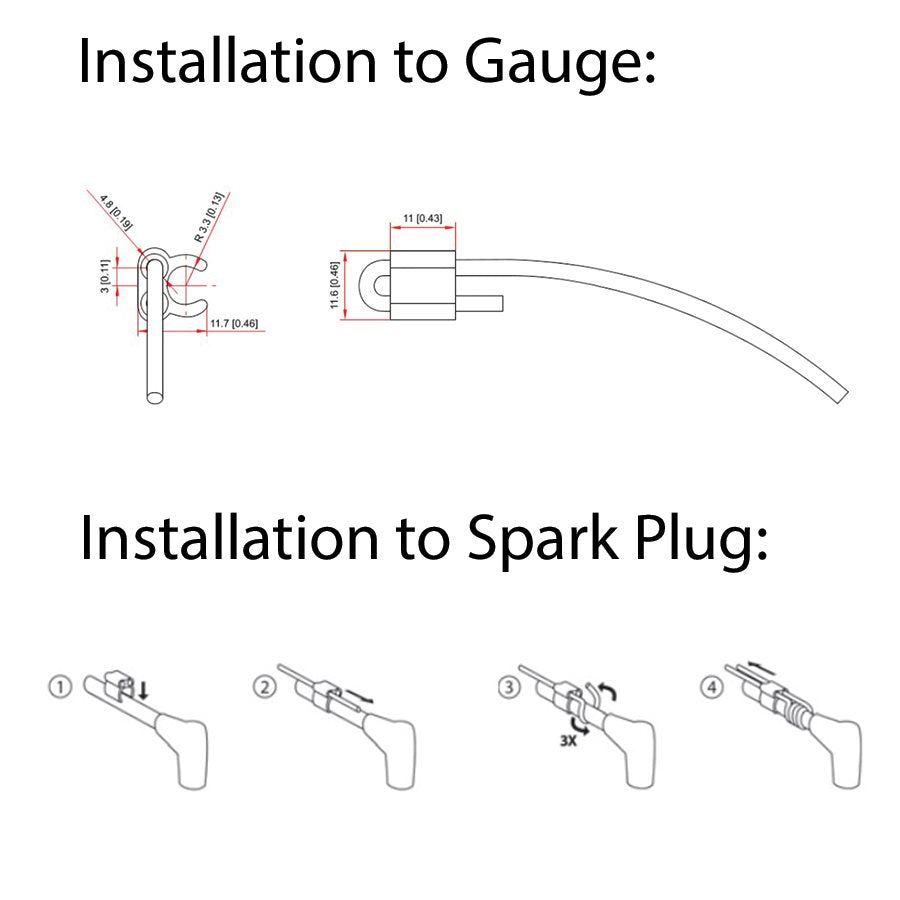

To install the clip

Connect RPM clip directly to the spark plug wire
While running the cable and the kart chassis, place the RPM cable as far as possible from the thermocouple cable.
Use plastic wrappers to firmly fix RPM connections to the chassis so to avoid movements or damages.

Please note: to diminish the signal intensity and thereby the relative noises, we suggest connecting the clip without winding the RPM cable up to the spark plug; if, on the contrary, the signal is not correctly read, wind the cable more times upon the spark plug cable.
